Digilance V - 신뢰할 수 있는 온도 측정

Digilance V는 현재 시판 중인 용융 금속 분야를 위한 최신 휴대용 온도계입니다.

Dimension

Description

Measurement Application Single or Multi-dip temperature measurement
Measurement Range
According to IEC 60584
Type S (Pt 10%Rh / Pt): 400 to 1768ºC (752 to 3214ºF)
Type R (Pt 13%Rh / Pt): 400 to 1768ºC (752 to 3214ºF)
Type B (Pt 30%Rh / Pt 6%Rh): 400 to 1820ºC (752 to 3308ºF)
Type K (Ni-Cr / Ni): 400 to 1372ºC (752 to 2502ºF)
Thermocouple Tables IPTS 48 / IPTS 68 / ITS 90
Thermocouple Accuracy Better than +/- 1ºC (1.8ºF) between 0ºC (32ºF) and 50ºC (122ºF) ambient temperature
Result Display Resolution: configurable 1º or 0.1º
Units: ºC or ºF
Data Storage Up to 500 measurements
Operating Ambient Temperature Range -20ºC (-4ºF) to 60ºC (140ºF), max 90% RH non-condensing
Size and Weight 140 x 170 x 230 mm (without lance installed) - 1.9kg (4.2lbs)
Power Supply Lithium Ion Battery Pack (3.5Ah - 7.2V)
12V DC, 2A max charging voltage
Battery life of 40 operating hours (nominal)

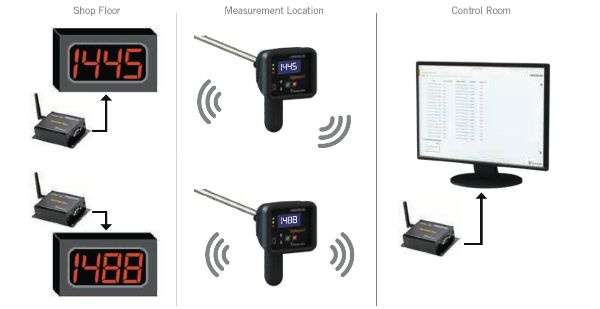

Wireless Communication (optional) Range of 100 meters - line of sight
Frequency hopping 2.4 GHx ISM unlicensed band technology
Max 10 mW transmit power
Receiver Box for Wireless Data Transfer (optional) Dimensions (mm): length = 108, width = 75, height = 32
Weight: 187 g
Power: 12V DC, 1.5A, center pin positive
Memory Software (included) Live measurements—export data—configure instrument
*Windows® XP or above
Compatible with Digilance IV
MeltControl Foundry Software (optional) *Windows® 7 SP1 or above
Immersion Lance Options Lances may be ordered separately—check with your local sales prepresentative

* Microsoft Windows® 7 and Windows® XP are registered trademarks of Microsoft Corporation
