QuiK-Spec® and QuiK-Lab® - Your Critical Link to Instant Analysis
Increasing demands to produce high quality steels with lower phosporus levels and lower CO2 outputs require steel plants to reinvent their converter process. Key element is a faster knowledge of the steel composition during this process.

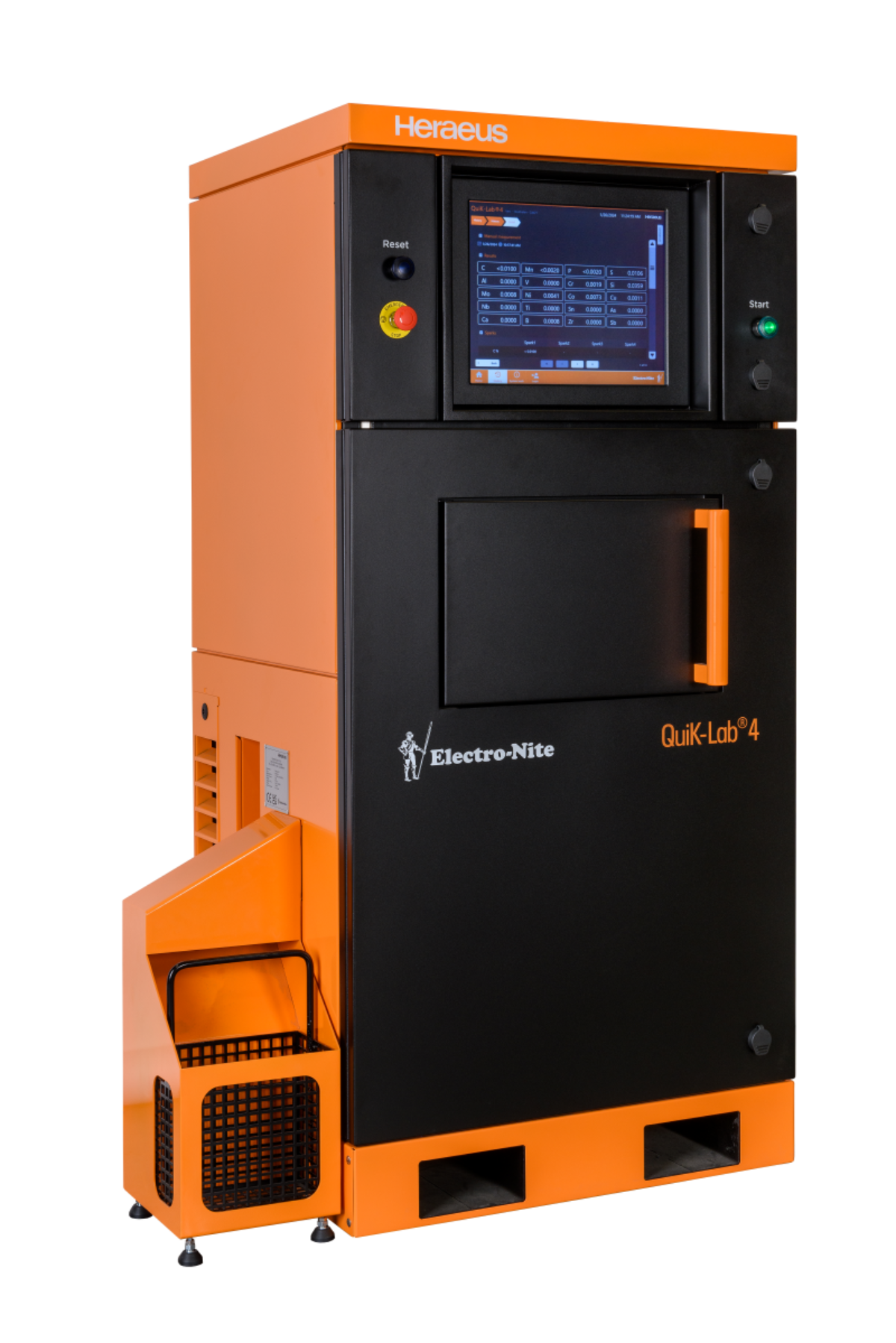

The QuiK-Lab® Spectral Units of Heraeus Electro-Nite provide a fast and reliable analysis of the most critical elements such as Carbon, Phosphorus, Manganese and Sulfur, within one minute after immersion during converter treatment.
- Availability of all vital information on the composition of the liquid steel before the end of blow.
- Helps the operator to decide which actions to undertake to get temperature, carbon, phosphorus within specification.
- Reduces reblows and overblows to a minimum.
- Reduce the converter tap-to-tap time by a few minutes and increase the productivity of the converter shop.
Provision of Clean Preparation-free Sample
- Due to the use of the gas purging technology, either being nitrogen or argon

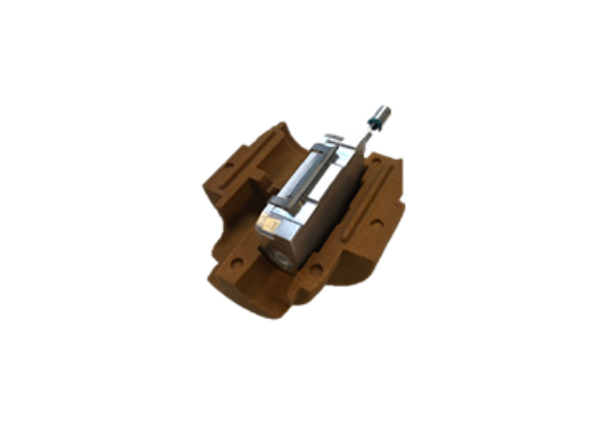

- The unique sample design
Flexibility and Autonomy for Selecting the Correct Type of Probes
- New hardware measures with both TSC-TSO probes and QuiK-Spec® probes

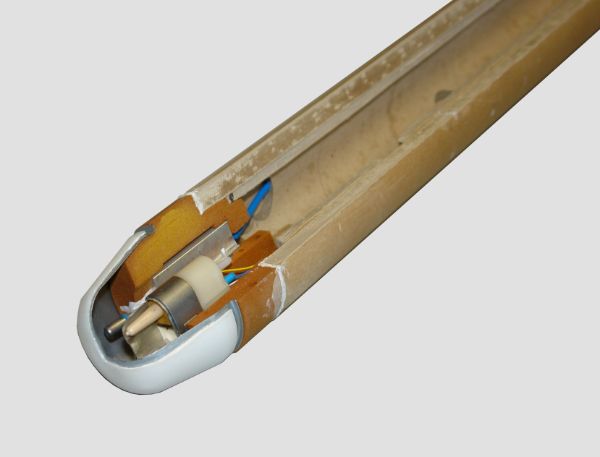

The sublance technology, together with the new Multi-Lance® QuiK-Spec®, provides the measurement of temperature, oxygen and liquidus identical with the existing Multi-Lance® sensors.
Technical Data
QuiK-Lab® 2
|
Item |
Description |
|---|---|
| Measurement application | Element composition of QuiK-Spec® samples |
| Sample rate | 1 sample/80 sec |
| Accuracy | 10% STDEV |
| Display resolution | 0.0001 |
| Display units | % |
| Voltage/Frequency | 1 Ph 230V 50/60Hz; Power (operational, peak): 3200W; Power (operational, heating): 2100W; Currency (operational): 25A; Short circuit current rating: 6 kVA |
| Fuse | Slow blow fuse |
| Compressed air | 5.5 (5 – 9.5) bar; Quality: ISO 8573, class 5 particles, class 6 humidity (dew point ≤ 10 °C) and class 4 oil (≤ 5 mg/m³) |
| Compressed Air flow | nominal 1050 SLPM (at 5.5 bar) with a minimum of 550 SLPM. Remark :1050 SLPM only for air knives during maintenance intervention. |
| Argon | 3 ± 0.2 bar; lab quality (min 5.0); consumption 1500 SL / day (with 50 measurements / day; flush 5 SL/hour and 3.5 SL per spark + 45 SL/hour for cassette flushing). |
QuiK-Lab® 3
|
Item |
Description |
|---|---|
| Measurement application | Element composition (C, Mn, P, S) of QuiK-Spec® samples (QSS) |
| Analysis time | 1 minute with 2 sparks |
| Accuracy | 10% STDEV (P, S, Mn at 0,01 wt% and C at 0,02 wt%) |
| Display resolution | 0.0001 |
| Display units | wt%, ppm, pts |
| Voltage/Frequency | 1 Ph 100-240VAC 50/60Hz; Power (operational, peak): unknown; Power (operational, heating): <640W@230 V, <320W@110 V; Currency (operational): < 10A@230, < 16 A @110 Volt ; Short circuit current rating: < 20 kVA |
| Fuse | Slow blow fuse |
| Argon | 6,8 bar max; lab quality (min 5.0); consumption 2 l/min between measurements and <5,8SL/min during measurements. |
| Ambiant operating temperature | -20 ºC to 50 ºC (-4 °F to 122 °F) 1 |
| Operating humidity range | between 5% and 90% (at 20ºC or 68°F) 2 |
| Storage conditions | between -20°C and 70°C (-4 °F and 158 °F) with a maximum of 90% non condensing RH |
| Dimensions | 850 x 750x 1830 mm (length, width, height) |
| Weight | 620 kg |
1 To ensure optimal performance at cold temperatures we have mounted on the internal heatsink four 160W PTC heaters (HP06-2/15-240) (together 160W at 230V, 146W at 110V) per heater. The heaters will heat up the cabinet and electronics until the temperature is high enough to start the IPC and the .NET script safely. During this pre-heating the pre-heating light will light up.
2 In high humidity conditions small amounts of condensation can be formed on the internal heatsink. Underneath this heatsink there is a drain reservoir and flexible tubing to lead water to the outside of the cabinet
